Description
Overview

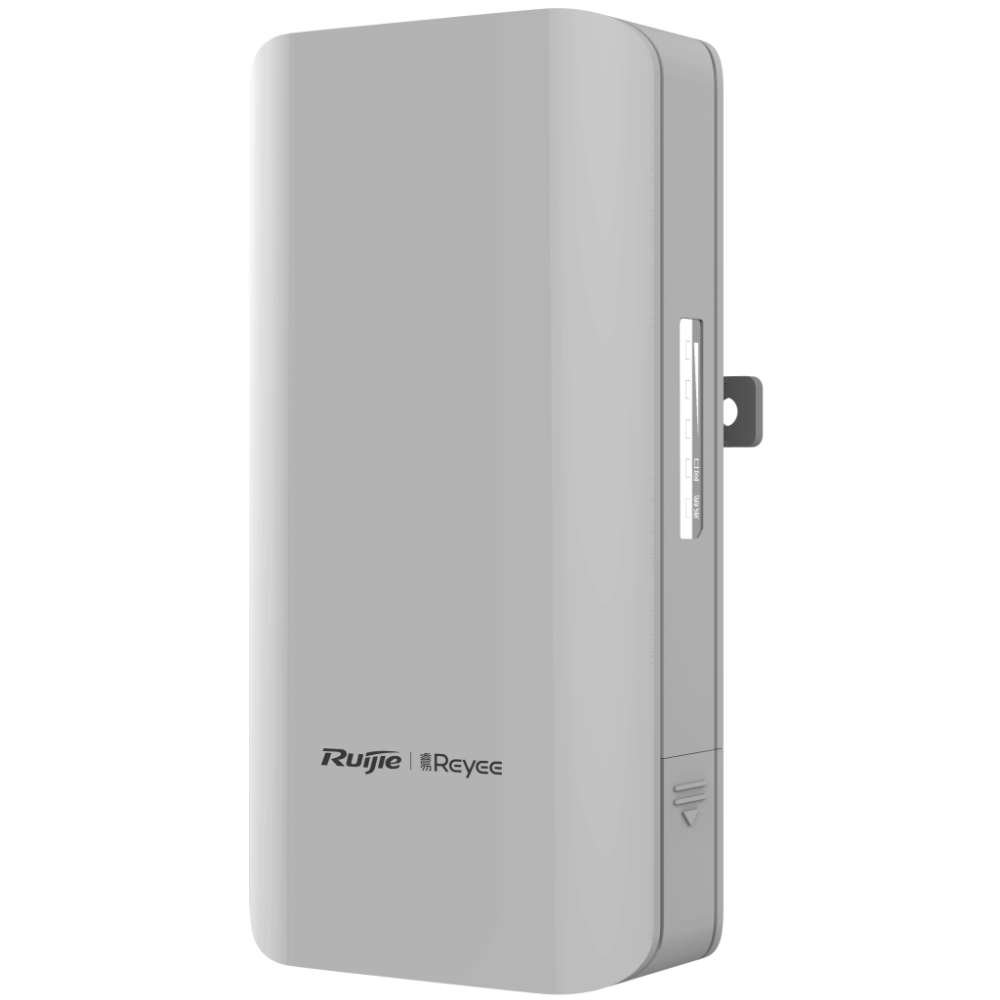

The Reyee RG-EST310-V2 is a compact outdoor wireless bridge designed for networking and security backhaul between two sites. It provides a long-range 5 GHz link option for connecting cameras, access points, or network segments where wired connectivity is impractical. Suitable for on-site installation and ongoing support from our networking team.
Key Features
- Model: Reyee RG-EST310-V2 — sold as a 2-pack for point-to-point links
- Up to 1 km effective range (line-of-sight conditions)
- 5 GHz Dual‑stream (WiFi 5) delivering up to 867 Mbps PHY rate
- Integrated 2 × 10 dBi directional (beam) antennas per unit
- Antenna pattern: ~60° horizontal, ~30° vertical beamwidth
- Two Fast Ethernet (FE) ports per unit for network connectivity
- Outdoor-rated enclosure — IP54 ingress protection
- Passive PoE support: one port with 24V Passive PoE @ 7W power
- 4 kV lightning protection for improved survivability at outdoor sites
- Management via Web UI, Cloud portal, or mobile App
Compatibility / Requirements
- Requires a compatible 24V Passive PoE injector or switch delivering up to 7W per unit
- Clear line-of-sight between endpoints for reliable 1 km links; obstructions will reduce range
- Outdoor mounting points and basic pole/structure hardware appropriate for IP54-rated devices
- Network-level access for WebUI/Cloud/App management (admin credentials and connectivity to management platform)
- Ensure compliance with local 5 GHz regulatory rules for outdoor use
What’s Included
- Reyee RG-EST310-V2 wireless bridge — 2-pack (two units)
- What’s in the box: not specified
Support Options
We offer optional professional services to deploy and support this bridge solution on-site:
- On-site installation and physical alignment of bridge units for optimal link performance
- Configuration and commissioning of network settings, VLANs, and management access
- Cabling and weatherproofing, grounding, and lightning protection best-practice installation
- Post-installation testing, throughput validation, and tuning
- Ongoing managed support and monitoring, remote troubleshooting, and firmware updates
