Description
Overview

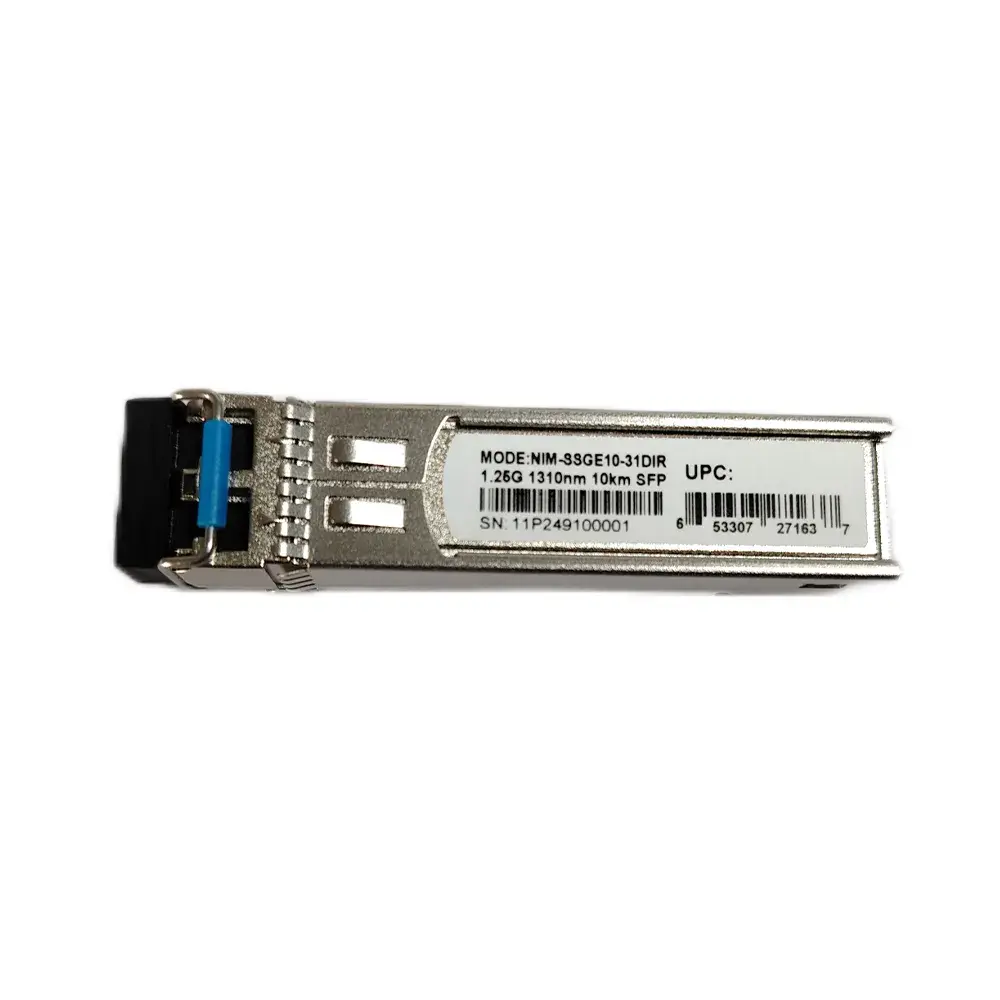

The NIM-SSGE10-31DIR is an SFP optical transceiver module designed for 1 Gbps networking and security infrastructure. It is an optical 1000BASE-SX-style transceiver operating at 1310 nm with a 10 km reach, intended for use in networking and security aggregation links that accept standard SFP modules.
Key Features
- Form factor: SFP (small form-factor pluggable) optical transceiver
- Nominal data rate: 1000BASE (1 Gbps)
- Wavelength: 1310 nm
- Maximum reach: up to 10 km
- Connector: Duplex LC
- Fiber type: Single-mode fiber
- DDM (Digital Diagnostic Monitoring) support for real-time optical diagnostics
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Part number / model identifier: NIM-SSGE10-31DIR
Compatibility / Requirements
- Requires a device with a standard SFP port that accepts 1 Gbps optical transceivers
- Compatible with single-mode duplex LC fiber cabling and appropriate fiber patching
- Host equipment must support DDM to access diagnostic telemetry (if diagnostics are needed)
- Ensure transceiver optical parameters match the remote endpoint (wavelength and reach)
- Verify environmental conditions fall within the specified operating temperature range for reliable operation
What’s Included
- What’s in the box: not specified
Support Options
We offer optional installation and configuration services for optical transceivers and fiber links, including on-site insertion and testing, network configuration, and integration into existing security or networking systems. Ongoing support options are available, from break/fix service calls to scheduled maintenance and monitoring — contact us to discuss the level of on-site or remote support that fits your deployment.
